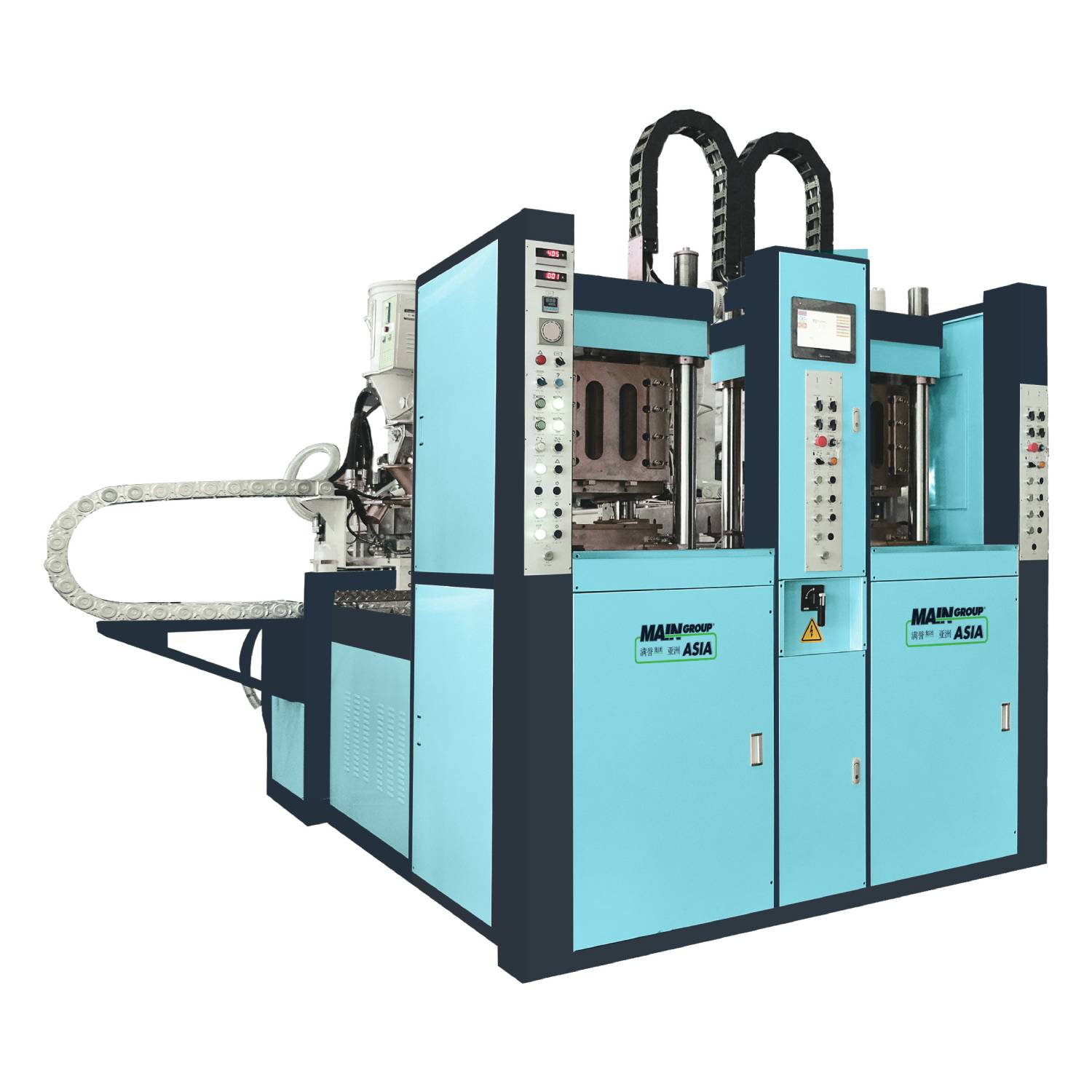

RX202
Description
USED TO PRODUCE TR/TPU SERIES EQUIPMENT
WITH 80 YEARS OF EXPERIENCE IN THE PRODUCTION OF STATIC INJECTION MOLDING EQUIPMENT AND NEARLY 16,000 UNITS SOLD ALL OVER THE WORLD, WE HAVE SUCCESSFULLY DEVELOPED THE BRX202 SERIES ACCORDING TO THE MARKET POSITIONING. USE THE CRANK SHAFT TO OPEN THE MOLD IMMEDIATELY, IMPROVE PRODUCTION EFFICIENCY, USE THE DOUBLE GUN MOBILE INJECTION, THE WHOLE MACHINE SERVO SYSTEM IS MORE ENERGY-SAVING AND EFFICIENT, FOR THE PRODUCTION OF A VARIETY OF SINGLE AND DOUBLE COLOR THERMOPLASTIC MATERIAL SOLES, SUCH AS: TR, TPR, PVC AND TPU.
TECHNICAL REFERENCE |
RX202 |
|
Section |
the units |
|
Station Number |
Station |
2 |
Total Clamping Force |
Ton |
220 |
Maximum Size of the Mold |
mm |
420×420×250 |
Maximum Opening Stroke |
mm |
350 |
Upper Mold Rotation Angle |
° |
0°-90° |
Feed Screw Diameter |
mm |
65 |
Feed Screw RPM |
0-200 |
|
Barrel Temperature Control Region Allocation |
No |
5 |
Injection Pressure |
Mpa |
180 |
Injection Volume |
cm³ |
1200 |
Aspect Ratio (L/D) |
22 |
|
Maximum System Pressure |
Kgf/cm² |
220 |
Feeding Unit Electric Consumption |
kW |
15.4 |
Maximum Power Consumption |
kW |
58.4 |
Average Electricity Consumption |
kW |
30 |
Mechanical Dimensions (L×W×H) |
mm |
4600×3600×2500 |
Mechanical Weight |
Ton |
9 |
