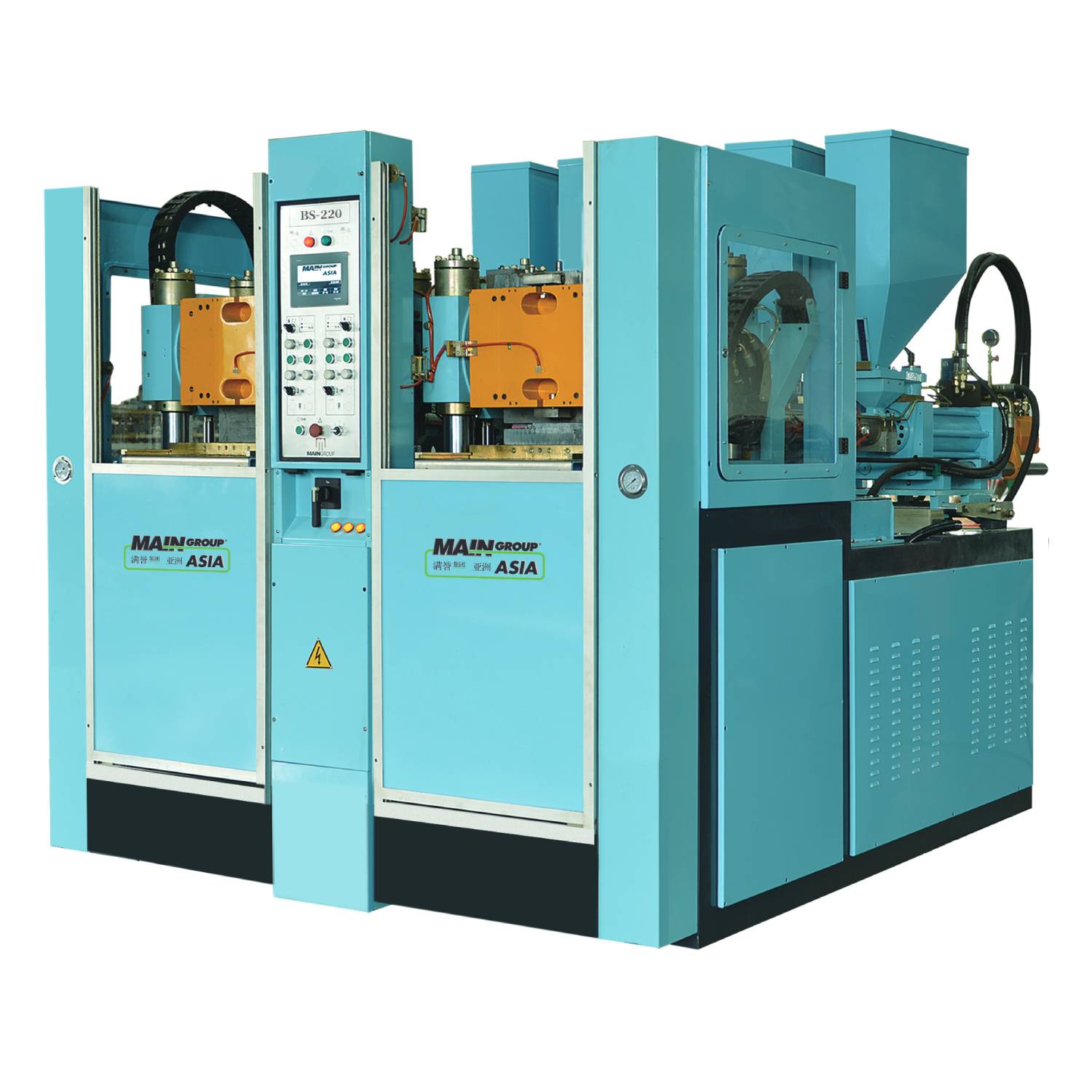

BS220
Description
STATIC MACHINES FOR THE PRODUCTION OF ONE/TWO-COLORED SOLES IN THERMOPLASTIC MATERIALS
WITH 35 YEARS OF EXPERIENCE IN THE FIELD OF STATIC MACHINES, AND NEARLY 5,000 UNITS SOLD IN THE WORLD, GLOBAL BS/220 IS THE RESULT OF A SUCCESSFUL RESEARCH AIMED AT THE COST PRODUCTION AND MARKETING ORIENTATION. GLOBAL BS/220 MAINLY INCLUDES TWO TYPES: EXTRUDER AND SCREW-PISTON, FOR THE PRODUCTION OF ONE OR TWO COLORED SOLES IN ALL KINDS OF THERMOPLASTIC MATERIALS (TR, TPR, PVC, TPU).
TECHNICAL REFERENCE |
Unit |
Extruder |
Extruder |
Screw-piston |
Screw-piston |
Mould-holder |
|||||
Mould-holder Station |
N. |
— |
— |
2 |
— |
Mould Clamping Force |
ton |
— |
— |
220 |
— |
Mould Opening Stroke |
mm |
— |
— |
max. 370 |
— |
Mould Thickness |
mm |
— |
— |
max. 120 |
— |
Max. Mould Size |
mm |
480×550 |
480×550 |
— |
— |
Injection Unit |
|||||
Number of Extruders / Injectors |
N. |
4 (Extruders) |
— |
— |
4 (Injectors) |
Screw Diameter |
mm |
66 |
65 |
55 |
45 |
Screw Speed |
r.p.m |
226 |
160 |
130 |
160 |
Injection Volume |
cc |
750 |
1000 |
720 |
480 |
Plasticizing Capacity |
kg/h |
45 |
— |
100 |
— |
Power Installed |
|||||
Total Installed Power |
kW |
76.38 |
46 |
||
Average Consumption |
|||||
Electrical Energy |
kWh |
8 |
— |
15 |
— |
Air |
NL/min |
— |
— |
200 |
— |
Refrigeration Units |
frig/h |
— |
— |
12000 |
— |
Weight & Dimensions |
|||||
Net Weight |
kg |
9500 |
— |
9800 |
— |
Length |
mm |
— |
— |
2200 |
— |
Width |
mm |
— |
— |
2700 |
— |
Height |
mm |
— |
— |
2600 |
— |
