E266UP ES206G
Description

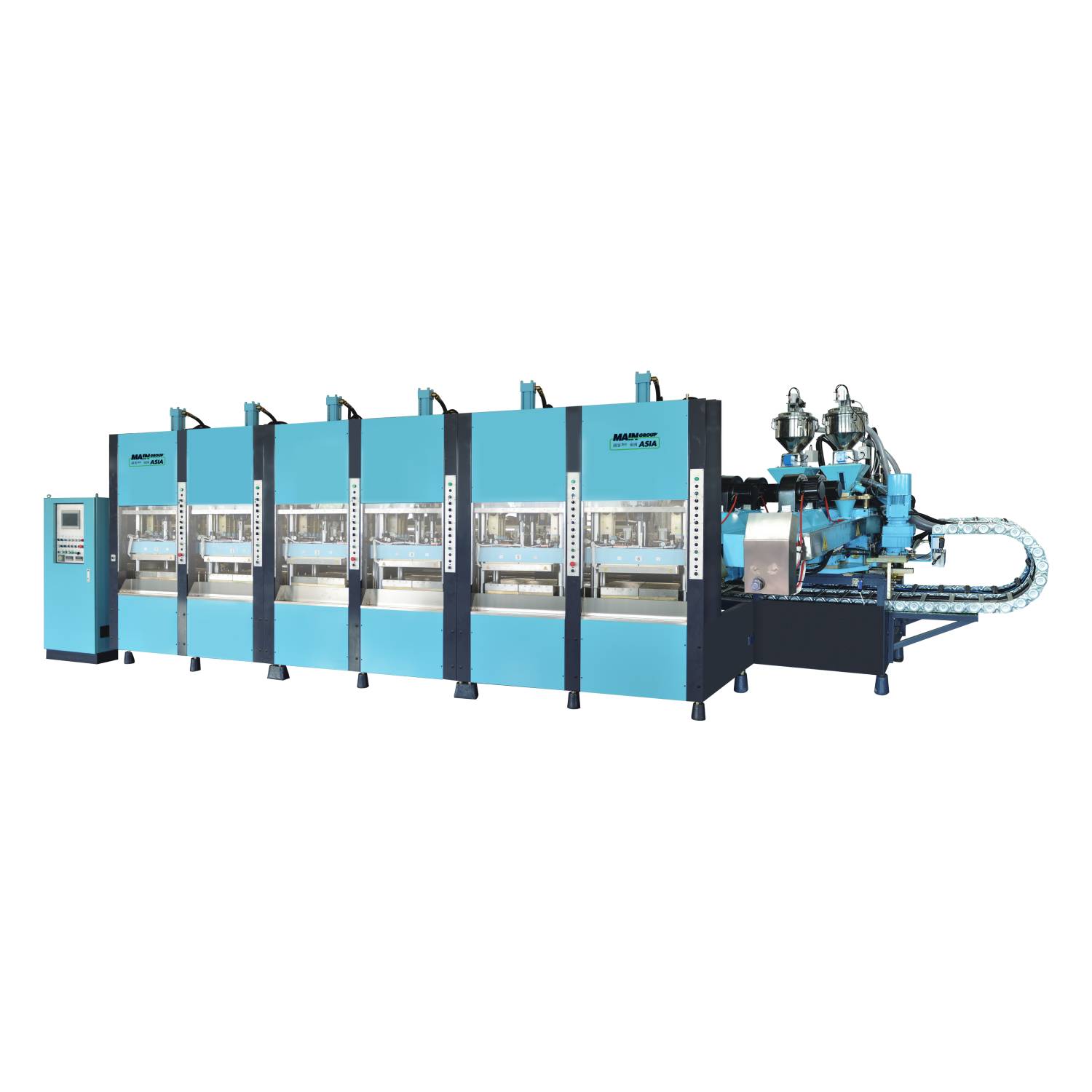

SINGLE-COLOR EVA / RUBBER & PLASTIC INJECTION MOLDING MACHINE
Function：
-
SERVO ENERGY-SAVING SYSTEM
-
LOW OPERATION HEIGHT
-
OPERATION HEIGHT IN ACCORD WITH HUMAN ENGINEERING
-
EXTRA HEIGHT OPENING STROKE
-
MOLD OPENING STROKE 350MM
-
EXTRA MOLD CLAMPING FORCE
-
2000KN
-
RAPID MOLD OPENING
-
USE THE CRANK-TYPE INSTITUTIONS INSTANTLY OPEN MOLD
-
GREEN ENVIRONMENTAL PROTECTION DESIGN
-
THE USE OF AUTOMATIC CLEANING PROGRAM CLEAN UP THE MOLD GENERATED GARBAGE.
-
SUPER LARGE MOULDING STRENGTH, WITH TWO PAIRS OF EACH MOULDS.
TECHNICAL REFERENCE |
2 |
4 |
6 |
8 |
10 |
|
Mold-holder Station |
N° |
2 |
4 |
6 |
8 |
10 |
Mold Clamping Force |
kN |
2000 |
2000 |
2000 |
2000 |
2000 |
Mold Opening Stroke |
mm |
350 |
350 |
350 |
350 |
350 |
Heating Plate Dimensions |
mm |
290*550*2 sets |
290*550*2 sets |
290*550*2 sets |
290*550*2 sets |
290*550*2 sets |
Standard Mold Height |
mm |
105-320 |
105-320 |
105-320 |
105-320 |
105-320 |
Injection Height |
mm |
60 |
60 |
60 |
60 |
60 |
Passage Between Columns |
mm |
605 |
605 |
605 |
605 |
605 |
Distance Between Centers of Injection Holes |
mm |
290 |
290 |
290 |
290 |
290 |
Plate Heating Power |
kW |
8 |
8 |
8 |
8 |
8 |
Injection Unit |
||||||
Number of Injection Units |
N° |
2 (1 per vers., 2 staz.) |
2 (1 per vers., 2 staz.) |
2 (1 per vers., 2 staz.) |
2 (1 per vers., 2 staz.) |
2 (1 per vers., 2 staz.) |
Screw Diameter |
mm |
60/65/70/75 |
60/65/70/75 |
60/65/70/75 |
60/65/70/75 |
60/65/70/75 |
Screw L/D Ratio |
— |
19 |
19 |
19 |
19 |
19 |
Injection Volume |
cm³ |
1100/1300/1500/1700 |
1100/1300/1500/1700 |
1100/1300/1500/1700 |
1100/1300/1500/1700 |
1100/1300/1500/1700 |
Injection Pressure |
bar |
1065 |
1065 |
1065 |
1065 |
1065 |
Screw Speed |
r.p.m |
0-140 |
0-140 |
0-140 |
0-140 |
0-140 |
Injection Speed |
cm³/s |
230 |
230 |
230 |
230 |
230 |
Screw Torque (Max) |
daN.m |
160 |
160 |
160 |
160 |
160 |
Heating Zones |
N° |
4 |
4 |
4 |
4 |
4 |
Power Installed |
||||||
Power Installed – Injection Units Heating |
kW |
10.5 |
10.5 |
10.5 |
10.5 |
10.5 |
Motor Movement Injector |
kW |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
Heated Plates |
kW |
32 |
64 |
96 |
128 |
160 |
Hydraulic Unit Motor |
kW |
48.6 |
48.6 |
48.6 |
48.6 |
48.6 |
Vacuum Pump |
kW |
2.2 |
2.2 |
2.2 |
2.2 |
2.2 |
Total Installed Power |
kW |
94.8 |
126.8 |
158.8 |
190.8 |
222.8 |
Average Consumption & Others |
||||||
Average Consumption – Electrical Energy |
kWh |
20 |
30 |
44 |
55 |
76 |
Average Consumption – Air |
NL/min |
100 |
100 |
100 |
100 |
100 |
Refrigeration Units |
frig/h |
16000 |
18000 |
21000 |
27000 |
30000 |
Weight & Dimensions |
||||||
Weight – Net Weight |
kg |
12600 |
18100 |
23600 |
29044 |
34600 |
Dimensions – Depth (A) |
mm |
4500 |
4500 |
4500 |
4500 |
4500 |
Dimensions – Length (B) |
mm |
4660 |
6580 |
8500 |
10420 |
12340 |
Dimensions – Stations Length (C) |
mm |
1920 |
5760 |
7680 |
9600 |
9600 |
Dimensions – Height (H) |
mm |
2800 |
2800 |
2800 |
2800 |
2800 |
