ES406SS

ES406SS

Category:

Description

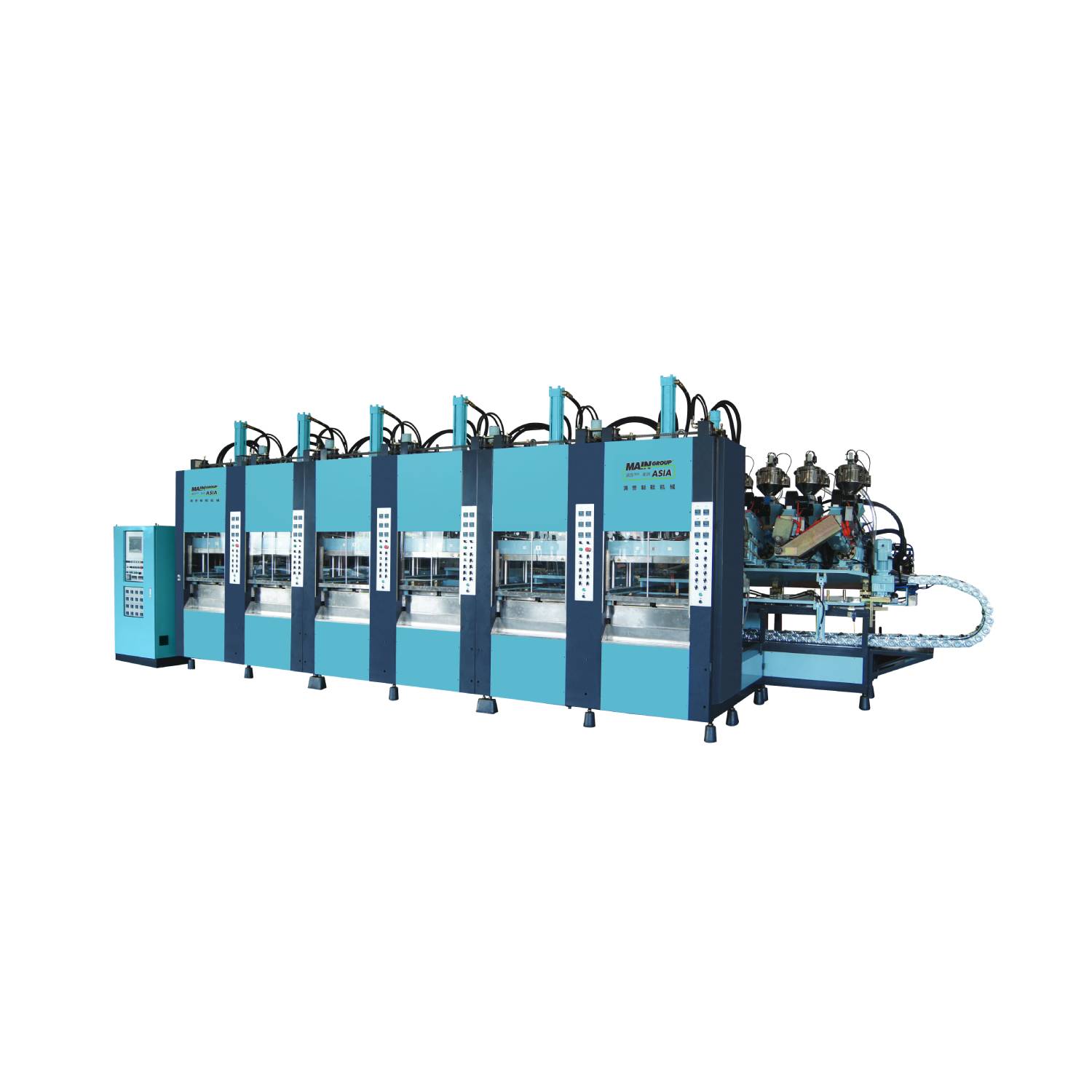

1-2 COLOR EVA / RUBBER & PLASTIC INJECTION MOLDING MACHINE
Function：
  • Low operation height
  • Operation height in accordance with ergonomics
  • Extra mold opening stroke
  • Mold opening stroke: 350 mm
  • Extra mold clamping force
  • 2000 kN
  • Rapid mold opening
  • Toggle-type mechanism for instant mold opening
  • Energy saving up to 30%
  • Hydraulic servo system for energy conservation

TECHNICAL REFERENCE
4
6
8
10
Mold-holder Station
N°
4
6
8
10
Mold Clamping Force
kN
2000
2000
2000
2000
Mold Opening Stroke
mm
350
350
350
350
Heating Plate Dimensions
mm
310*600*2 sets
310*600*2 sets
310*600*2 sets
3100*600*2 sets
Standard Mold Height
mm
125*330
125*330
125*330
125*330
Injection Height
mm
60*160
60*160
60*160
60*160
Passage Between Columns
mm
860
860
860
860
Distance Between Centers of Injection Holes
mm
360
360
360
360
Plate Heating Power
kW
8
8
8
8
Injection Unit
Number of Injection Units
N°
4
4
4
4
Screw Diameter
mm
60
60
60
60
Screw L/D Ratio
mm
19
19
19
19
Injection Volume
cm³
1100
1100
1100
1100
Injection Pressure
bar
1100
1100
1100
1100
Injection Speed
cm³/s
230
230
230
230

Screw Speed
r.p.m
0~140
0~140
0~140
0~140
Screw Torque (Max)
daN.m
160
160
160
160
Heating Zones
N°
4
4
4
4
Power Installed – Injection Units Heating
INJECTION UNITS HEATING
kW
5.5X4
5.5X4
5.5X4
5.5
Motor Movement Injector
kW
2.2
2.2
2.2
2.2
Vacuum Pump
kW
4
4
4
4
Heated Plates
kW
64
96
128
160
Hydraulic Unit Motor
kW
105
105
105
105
Total Installed Power
kW
191
223
255
287
Average Consumption
Average Consumption – Electrical Energy
kW/h
40
60
80
100
Average Consumption – Air
NL/min
100
100
100
100
Refrigeration Units
Kcal/h
18000
21000
27000
30000
Weight
Weight – Net Weight
T
30
40
50
60
Dimensions (L*W*H)
m
9X4.2X3.1
11X4.2X3.1
13X4.2X3
15X4.2X3.1
